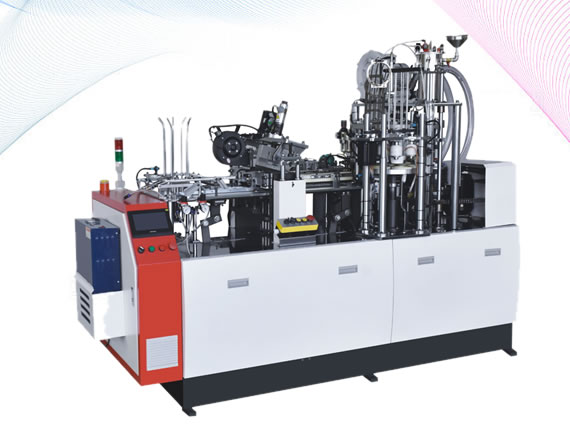

ZSW-688 Medium Speed Smart Paper Bowl Forming Machine
Brief Description:
ZSW-688 medium-speed intelligent paper bowl forming machinehas advanced design andintelligent processOrder, more reliable anddurable, competitive price.Can be made ofone-sided or double-sidedPE film paper bowl.
Paper feeding of pre-printed fan-shaped cups, welding on thebottom side of the cup, oil lubrication for the top curling, manipulatortransfer of the cup barrel, bottom punching of the bottom paper, bottompreheating and prefolding, main heating, bottom knurling (double PEcooling device),Crimping,cup collection,speed 70-80 pcs/min (themachine can run 80-90 pcs/min, butit cannot work for a long time, sowe limit the maximum speed of the machine to 70 pcs/min).
Technical Specification:
Model
ZSW-688(heat sealing)
ZSW-688(Ultrasonic sealing)
Paper material
150-300gsm polyethylene coated paper
150-300gsm polyethylene coated paper
Speed
70-80pcs/(Minute)
70-80pcs/(Minute)
Applicable size
150ML-350Z
150ML-350Z
Power requirements
220V/380V 50Hz
220V/380V 50Hz
Total power
12Kw
12Kw
Machine weight
2400K9
2400K9
Shape size
L2550*W1550*H1950mm
L2550*W1550*H1950mm
Working pressure
0.5-0.8m'/min
0.5-0.8m'/min
Paper bowl production cost
(Accordingtothe size ofpaper cuppaper pe coating weight and the number of printing color to determine)
(Accordingtothe size ofpaper cuppaper pe coating weight and the number of printing color to determine)
Note
(Avarietyofpaper cup machineryand papaer cup can be customized according to customer's requirements)
(Avarietyofpaper cup machineryand papaer cup can be customized according to customer's requirements)
